Polarized Light
ZPU01

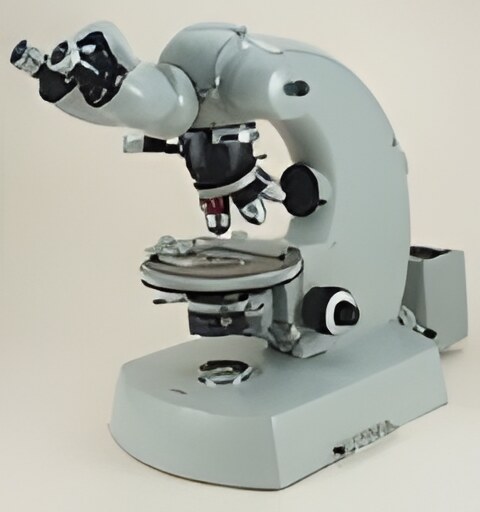

Zeiss Universal for Transmitted Polarized Light
A world-class Zeiss polarizing microscope, this Universal sets the standard for demanding applications. Bright 100 watt halogen illuminator and renowned Zeiss quality are sure to please any researcher.
Photos
Thumbnail and photo gallery
Image unavailable This image could not load
Specifications
Instrument notes
- Robust Universal stand with precision focusing mechanism
- Graduated rotating Pol stage with vernier drive, dual readouts and precision specimen carrier
- Tip-out achromatic Pol condenser, 0.9 n.a.
- 90 degree rotating polarizer
- 360 degree rotating analyzer slider & quartz white plate
- Quartz Red 1 and 1/4 lambda compensators
- Tubehead with Optovar magnification changer
- Planachromat 2.5x centerable Pol objective
- Achromat 10X, 16x, 40x and 100x Oil centerable Pol objective
- KPL 8X Pol focusable eyepiece pair with crossline reticle
- Special Pol binocular tube uses gears to maintain cross hair orientation independently of interpupuliary adjustments
