Zeiss Universal Microscope for Reflected Light Nomarski DIC

One of the all-time classics from Zeiss, the Universal for reflected light Nomarski DIC delivers some of the finest images available in the materials sciences.

Add to inquiry Back to catalog

Photos

Thumbnail and photo gallery

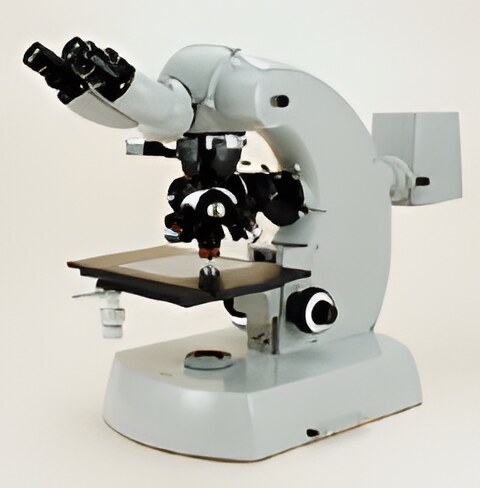

ZMU03 — Zeiss Universal Microscope for Reflected Light Nomarski DIC; Catalog thumbnail — Catalog thumbnail

Specifications

Instrument notes

Extremely robust all-metal stand construction for years of trouble-free operation.
Super sharp EpiPlan Pol objectives with integral, adjustable Wollaston prisms for ASTM standard magnifications of 50x, 100x, 200x and 500x.
Widefield high-eyepoint KPl 10x/18 eyepiece pair.
Rotatable epi-polarizer and rotatable analyzer slider offer complete control of extinction in polarized light.
Precision 4" x 4" Marzhauser X-Y stage with glass stage plate assures specimen planeity and accurate placement.
Built-in Optovar magnification changer extends image magnification range without distortion.
Powerful 12v, 100w illuminator assures short film exposures and allows use of standard video and digital cameras.
