Zeiss ICM 405 with Epiplan-HD Objectives for Brightfield and Darkfield

For metallurgical applications demanding easy photo documentation, the ultra-stable Zeiss ICM 405 offers an elegant solution. ZMI01 offers built-in 4x5 / Polaroid and 35mm capability and brightfield-darkfield Epi-Planachromat objectives delivering ASTM standard magnifications to 1000X.

Add to inquiry Back to catalog

Photos

Thumbnail and photo gallery

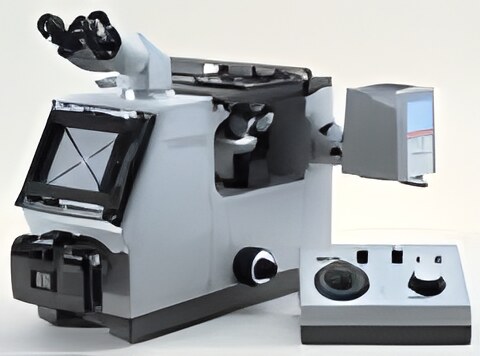

ZMI01 — Zeiss ICM 405 with Epiplan-HD Objectives for Brightfield and Darkfield; Catalog thumbnail — Catalog thumbnail

Specifications

Instrument notes

Stable ICM 405 stand with built-in 4x5 / Polaroid and 35mm camera systems
12 volt, 100 watt halogen illuminator
Polarizer / analyzer for studies in polarized light
Right-reading inclined binocular eyepiece tube with widefield high-eyepoint focusable 10x eyepiece pair
5-place revolving nosepiece
Epiplan-HD 4x, 8x, 16x, 40x, 80x objectives:1.25x tube lens
Large format stage with low-slung controls and custom specimen carrier accommodates many embedded specimen types
Full-function MC-63 camera controller
