Biology

ZBU11

Zeiss UEM with Planachromats for Epi-Fluorescence and Nomarski DIC

For advanced imaging applications and critical observation, very few microscopes can surpass the Zeiss UEM. ZBU11 comes equipped for Epi-Fluorescence and Nomarski DIC.

Add to inquiry Back to catalog

Photos

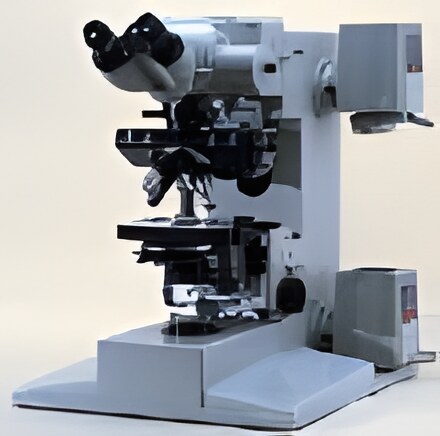

ZBU11 — Zeiss UEM with Planachromats for Epi-Fluorescence and Nomarski DIC; Catalog thumbnail
Catalog thumbnail
ZBU11 — Zeiss UEM with Planachromats for Epi-Fluorescence and Nomarski DIC; Catalog thumbnail

Specifications

Instrument notes

  1. Extremely stable modular UEM stand
  2. 100 watt halogen transmitted light illumination
  3. HBO 100 Epi-Fluorescence illumination
  4. 4-position IIIRS Fluorescence vertical illuminator
  5. Tubehead with Optovar magnification changer and focusable Bertrand lens
  6. Seidentopf binocular with widefield, high-eyepoint 10x adjustable eyepiece pair
  7. Achromatic-Aplanatic Phase/DIC turret condenser, 1.4 n.a.
  8. Rotating polarizer on carrier
  9. Planachromat 2.5x brightfield objective
  10. Planachromat 16x, 40x and 100x Oil objectives with Wollaston prism DIC sliders
  11. Planapochromat 63x/1.4 Oil objective with Wollaston prism DIC slider
