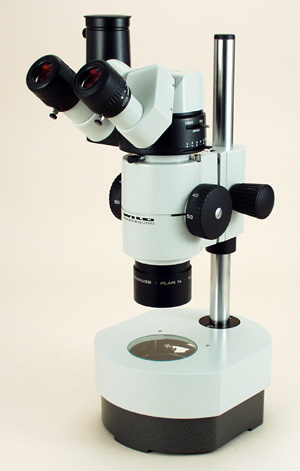

Wild M8 for Transmitted Light Brightfield & Darkfield

Representing the top of the line from Heerbrugg before the introduction of the MZ Series, the M8 still delivers world-class performance.

Photos

Thumbnail and photo gallery

Specifications

Bright 100 watt halogen transmitted light stand offers selectable brightfield and darkfield with a simple lever.
Plan 1.0x prime objective produces beautiful images at a comfortable 87mm working distance, which range can be extended using 0.4x and 1.6x auxiliary lenses for maximum flexibility.
Ergonomic low-slung binocular tube offers comfortable viewing angle when using the included imaging tube.
Stepless 6x to 50x zoom range when using wide field hi-eyepoint 10x eyepieces.
Precision focus drive with adjustable tension assures accurate positioning of instrument over specimen.
Robust, all-metal construction will give many years of top notch performance.
Special phototube maintains binocular vision during exposures and accepts all film, video and digital cameras.
