Princeton Instruments (EG&G/PARC) Model OMA-IV optical Multi-Channel analyzer with Low UV Option

VID11 is a complete, Windows-driven imaging spectroscopy package for the 200nm to 1100nm range.

Photos

Thumbnail and photo gallery

Specifications

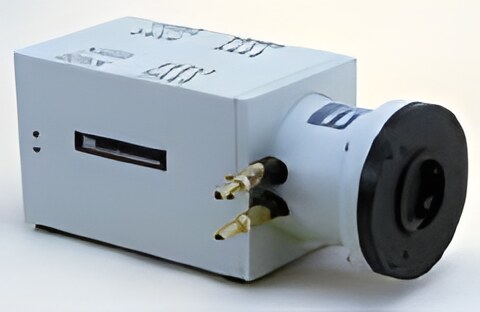

Model 1530-PUV scientific-grade, 512 x 512 thermoelectrically cooled CCD detector
18-bit dynamic range
Low read and dark noise
Broad wavelength response with excellent performance in the 200-1100nm range
Dual interlacing readout capability
Full-field, virtually defect-free image area
Large element size for total image size of 9.7mm x 9.7mm
Purge-free design operation at -80C...without the need for cryogenics
Programmable mechanical shutter to control the light exposure period
Programmable trigger I/O at detector head
X-Y-Z monitor
ASIC-based controller board with dual-ported RAM
MODEL 1235 DIGITAL TRIPLE GRATING SPECTROGRAPH (Action Research SpectraPro-275i)
0.275 meter focal length
i-Series imaging optical system with plane gratings
Standard 180 degree straight-through beam path
f/3.8 aperature ratio
0.1mm or better instrument resolution
Dispersion: *3.0nm/mm with 1200g/mm grating *6.0nm/mm with 600g/mm grating *12.0nm/mm with 300g/mm grating
RS-232 computer interface
68mm X 68mm standard grating size
Computer controlled or push-button grating changes with remote scan controller
Windows-driven OMA SPEC spectrocopy software available from Princeton Instruments
