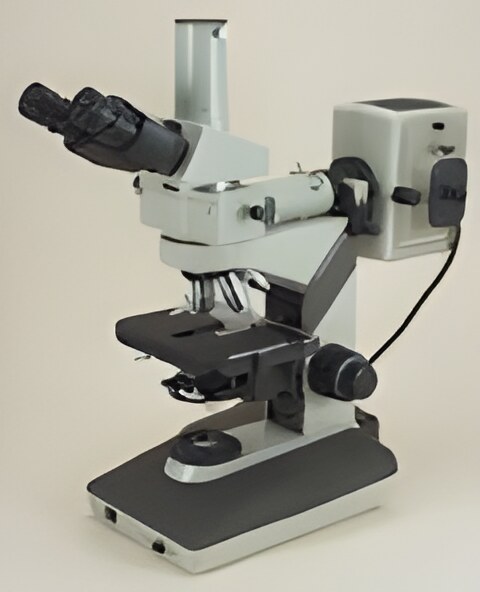

Nikon Labophot-2 with E-Planachromats for Brightfield and Epi-Fluorescence

The Nikon Labophot-2 for routine epi-fluorescence includes powerful 100 watt mercury illumination and two filter sets.

Photos

Thumbnail and photo gallery

Specifications

4x Achromat and 10x, 40x and 100x Oil objectives for brightfield
Two-position fluorescence vertical illuminator with B-2 and G filter cubes for FITC and Rhodamine
HBO 100 mercury lamp and power supply
Achromatic BF condenser 0.90 with tip-out front lens
30 degree inclined trinocular with CFWN 10x eyepiece pair, 20mm field of view
Graduated mechanical stage
Built-in 6 volt / 20 watt halogen transmitted light illuminator
