LBU08

Leitz Orthoplan Microscope for Smith T Interference Contrast

The rare Smith T interference contrast variant of this German classic delivers stunning images in high relief by revealing subtle differences in refractive index in unstained specimens.

Add to inquiry Back to catalog

Photos

LBU08 — Leitz Orthoplan Microscope for Smith T Interference Contrast; Catalog thumbnail
Catalog thumbnail

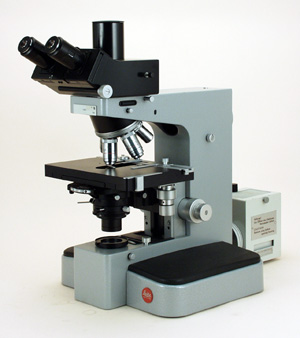

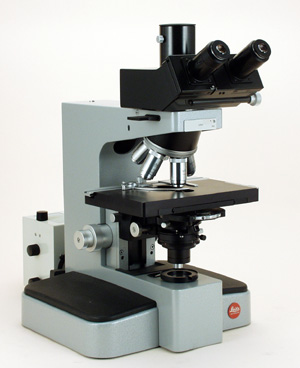

LBU08 — Leitz Orthoplan Microscope for Smith T Interference Contrast; Catalog thumbnail LBU08 — Leitz Orthoplan Microscope for Smith T Interference Contrast; Photo 1 LBU08 — Leitz Orthoplan Microscope for Smith T Interference Contrast; Photo 2

Specifications

Instrument notes

  1. Stable, solid example of classic German opto-mechanical engineering.
  2. Super-widefield trinocular tube with 38 mm. ISO photoport.
  3. Late-version Periplan GW10x widefield high-eyepoint eyepiece pair.
  4. Plan Fluorite 4x scanning objective.
  5. NPL Interference Contrast 16x, 40x and 100x Oil objectives with integral Wolaston prisms.
  6. Plan Apochromat 25x mid-range objective.
  7. Spectacular Nomarski DIC turret condenser with orientatable prism polarizer, Wollaston prisms and tip-out 0.9 N.A. top lens.
  8. Bright 12 v, 100 w halogen illuminator.
  9. Entire instrument presents extremely well, exhibiting a remarkable state of preservation.
