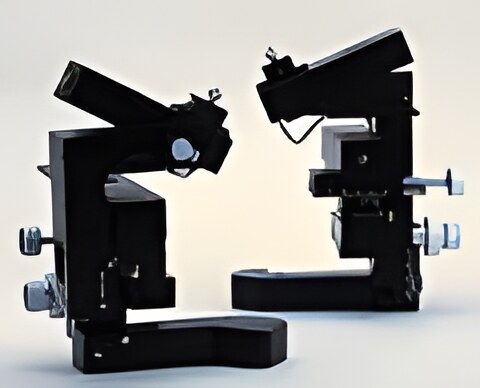

Marzhauser DC-3K Micromanipulators

Precise 3-axis motor driven micromanipulators by this renowned German maker.

Photos

Thumbnail and photo gallery

Specifications

Motorized and manual adjustment in the x, y and z planes
0.05my resolution
DC micro-motors controlled by micrometer spindles with readout down to 10 microns
Manual positioning aided by integral scales with resolution to 0.1mm.
Tiltable x-axis to 90°
Control unit MS-314 offers forward and reverse in 3 axes using 6 control keys
User-selectable step size activated by short pulse of control key
Sustained keying activates continuous travel until released
Continuous travel speed adjustable by potentiometer
Maximum speed with 900:1 standard gear ratio is 0.2mm. / sec.
Electronic backlash compensation when reversing directionMounting options available for most applications
